1800 Ton Cleveland Press
1800 TON CLEVELAND MECHANICAL TRIM PRESS, S/N 8753, MODEL SINGLE ACTION 34-S, Stk#2591CE
ONE PREOWNED 1800 TON CLEVELAND MECHANICAL TRIM PRESS,
S/N 8753, MODEL SINGLE ACTION 34-S
SPECIFICATIONS:(subject to buyer verification)
Ram F-B and L-R………………………………………………………………. 48” & 56”
Bed F-B and L-R……………………………………………………………….. 53” & 57”
Shut Height………………………………………………………………………. 68”
Stroke…………………………………………………………………………….. 30”
Adjustment (electrical)………………………………………………………… 8”
Strokes Per Minute…………………………………………………………….. 15
Mechanical Bottoms Knockout & Top
Floor Space F-B & L-R……………………………………………………….. 8’ & 11’
Height Above Floor…………………………………………………………….. 24’6”
One (1) Bottom & Top Bolsters
Weight Approximately…………………………………………………………. 350,000 lbs

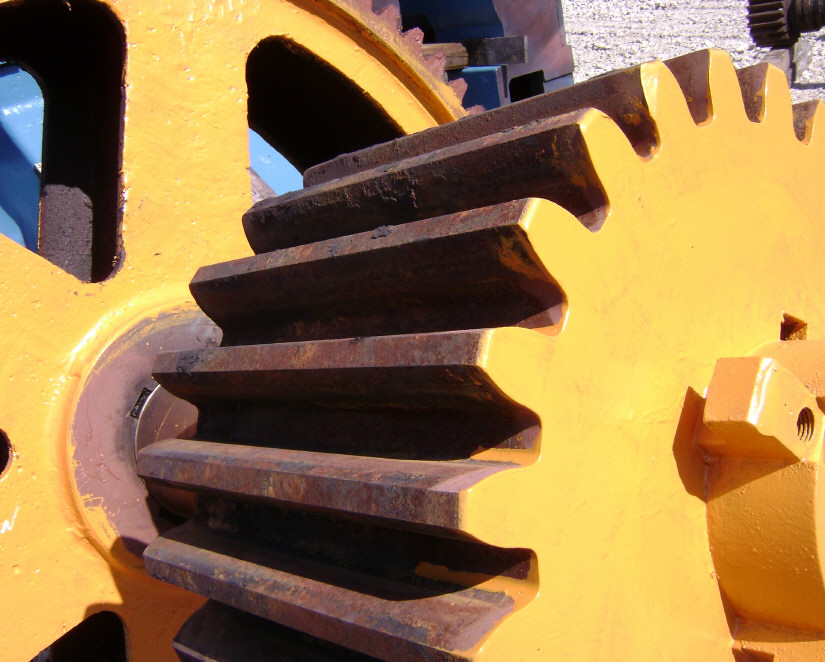

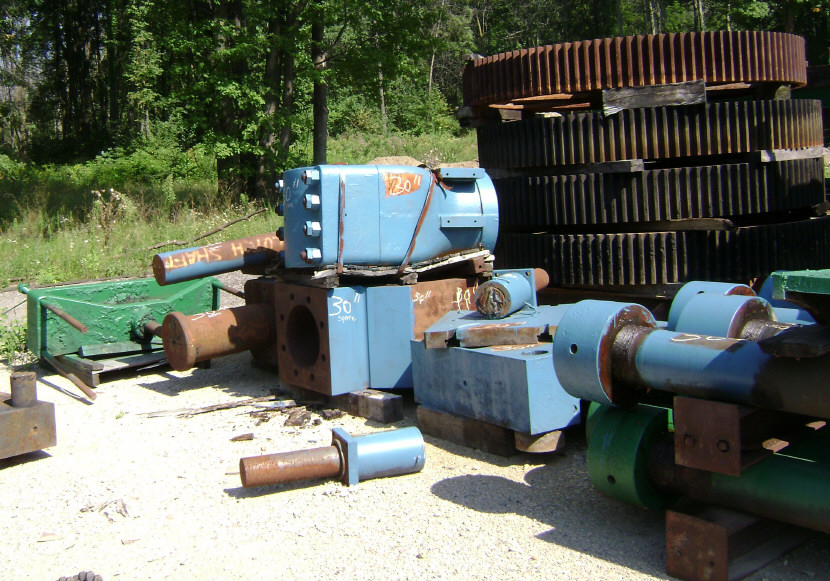

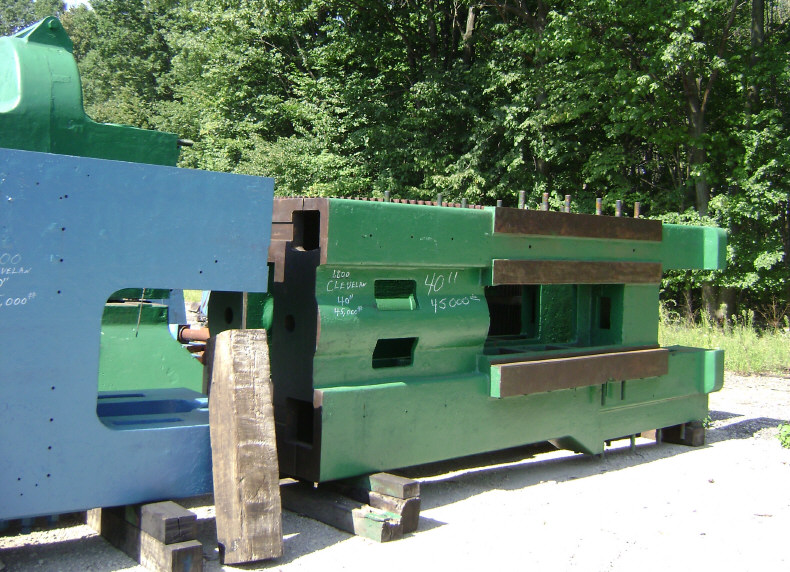

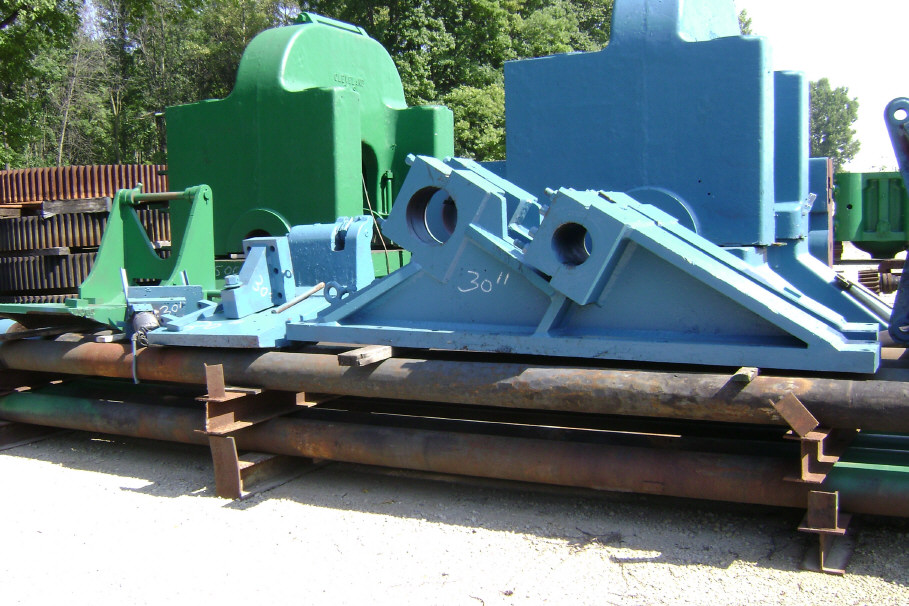

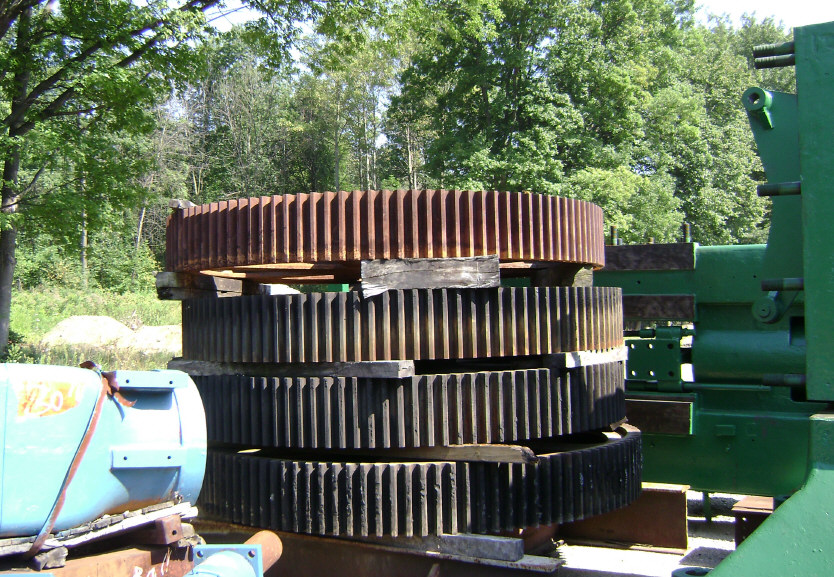

CONDITION: Very Good-Disassembled and in outdoor storage. Gears and Ways very good. Less motor controls and guards
LOCATION: Michigan, USA
Stk#2591CE
Specifications are correct to the best of our knowledge but are subject to correction upon inspection. All sales are subject to our “Standard Terms and Conditions of Sales” with exception made only by Mauldin Machine Inc and all parties involved in the transaction.
