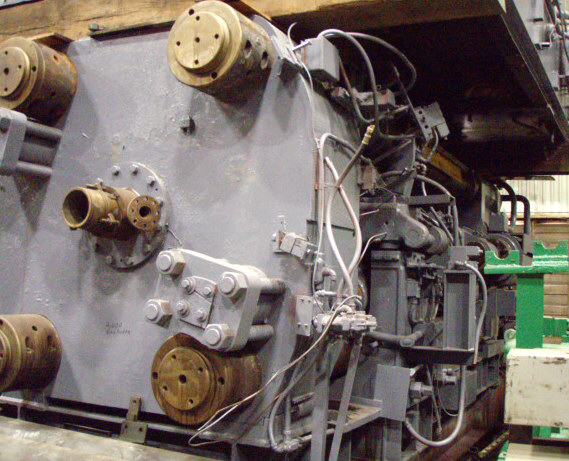

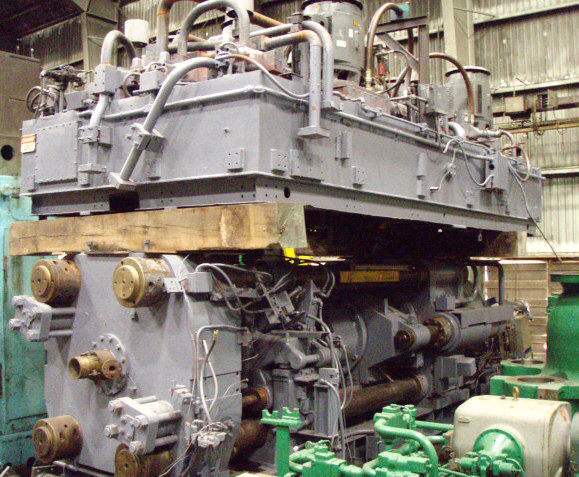

2100 Ton B-L-H Hydraulic Horizontal Extrusion Press. Huge amount of spares, was producing copper tubing. Stk#2530CE

SPECIFICATIONS:

Capacities
Press at 3000 PSI (maximum)…………………………………………2100 Tons
Press at 2550 PSI…………………………………………1800 Tons
Piercer ram at 2550 PSI
Advance…………………………………………190 tons
Return…………………………………………100 Tons
Main Ram at 2550 PSI…………………………………………1545 Tons
Side rams at 2550 PSI
Advance…………………………………………265 Tons
Return…………………………………………120 Tons
Container Shifting rams at 2550 PSI
Sea…………………………………………115 Tons
Stripping (if used)…………………………………………145 Tons
Main Ram Diameter…………………………………………40”
Side Cylinders Bore…………………………………………11.5”

Strokes
Main and Side Rams…………………………………………47”
Piercer Ram…………………………………………26”
Container Shifting Rams…………………………………………15”

Speeds-Automatic Mode
Main Ram
Rapid Advance        650”/min
Normal Advance        360”/min
Return…………………………………………800”/min
Extrusion
2100 Tons…………………………………………145”/min
Piercer Ram
Advance…………………………………………500”/min
Return…………………………………………650”/min
Container Shifting
Open…………………………………………219”/min
Close…………………………………………282”/min

General
Range of Billet Diameters…………………………………………7” to 9”
Maximum Billet Length Solid Billet…………………………………………16”
Length of Container…………………………………………22”
Number of Main Pumps…………………………………………6
Total Output of Main Pumps…………………………………………888 GPM
Motors for Main Pumps…………………………………………250 HP
Six (6) Total

EQUIPPED WITH:

Piercer
Material run-out conveyor
Die-changer
Billet loader
Material saw
Drawings

CONDITION: Very Good to Excellent, was primary extruder in plant recently closed. Last used to extrude

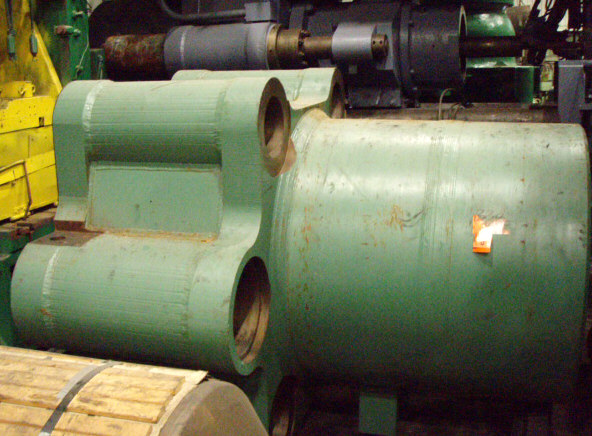

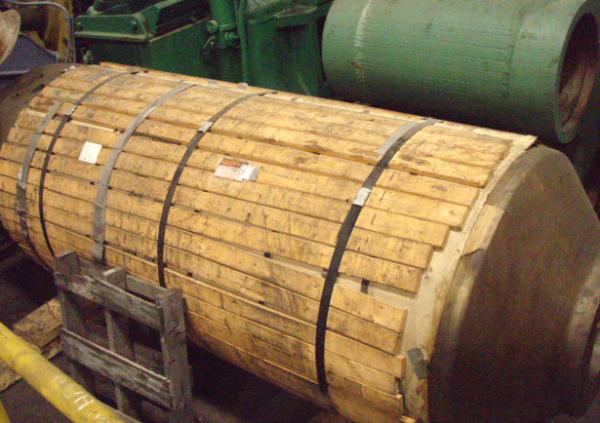

copper. Over $400,000.00 in spare parts. Updated in the 1970’s and 1990’s. New spare cylinder and
ram. Partially disassembled and in storage.

LOCATION: NE USA
