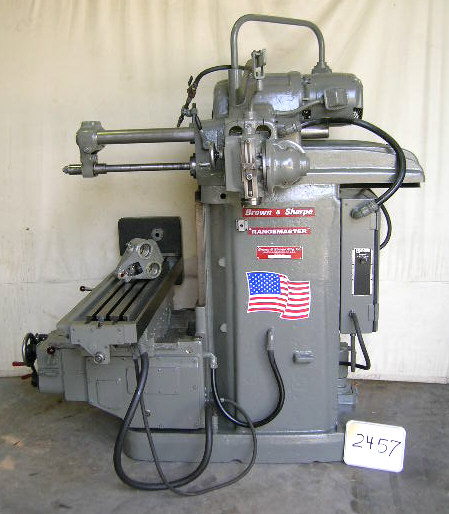

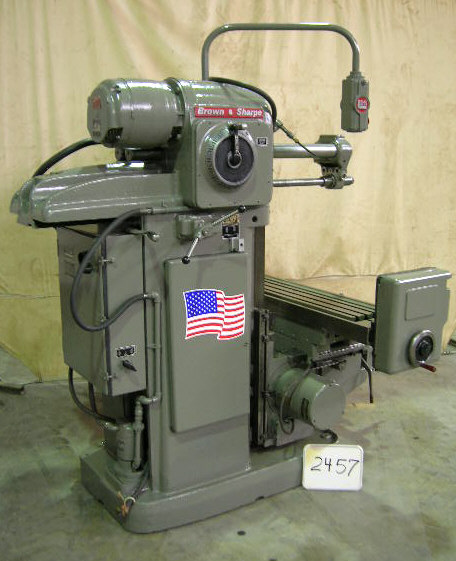

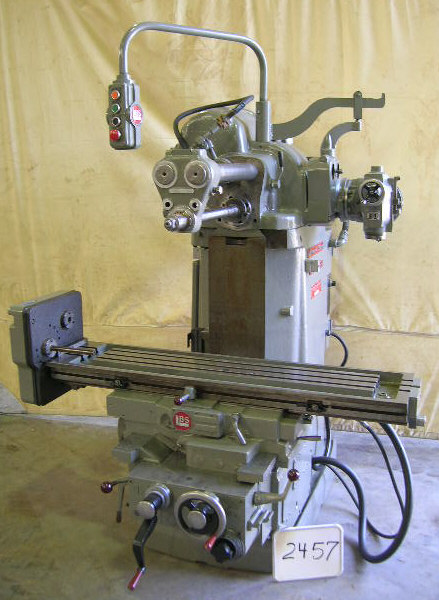

Brown & Sharpe Rangemaster No. 20 Universal Sliding Head Type
Horizontal Milling Machine, S/N 506-23-107, New 1969,
Equipped with Vertical Head Attachment
SPECIFICATIONS:
Table Working Surface………………………………………………………………. 54” x 13”
Travel Range
Longitudinal………………………………………………………………………………….. 28”
Cross………………………………………………………………………………………….. 12”
Vertical………………………………………………………………………………………… 22”
Distances-Spindle Center to Table
Maximum…………………………………………………………………………………… 23”
Minimum……………………………………………………………………………………… 1”
Spindle Nose…………………………………………………………………. No 50 Standard
Spindle Nose in Vertical Head Attachment…………………………… No 40 Standard
Spindle Speeds
Number…………………………………………………………………………………… 18
Range…………………………………………………………………….. 40-1530 rev/min
Number of Feeds…………………………………………………………………………… 18
Feed Range……………………………………………………………………………… ¼“ – 32”
Rapid Traverse…………………………………………………………………………. 75”/min
Overarm Distance-Lower Face to Spindle Centre Line…………………………….. 4.5”
Spindle Drive Motor………………………………………………….. 3hp/3ph 220/480v
Feed Drive Motor………………………………………………………. 1hp/3ph 220/480v
Net Weight…………………………………………………………………………………. 5500 lbs
Floor Space (F-B, L-R)………………………………………………………………. 80” x 70”
ACCESSORIES & FEATURES:
Swiveling Vertical Head Attachment with Manual Quill Travel
Arbor Support-2 Each
Coolant w/Splash Guard
Complete Set of Manuals
Condition: Very Good to Excellent. Came out of toolroom with limited use. Runs great and ways are very good to excellent.
Stk#2457
