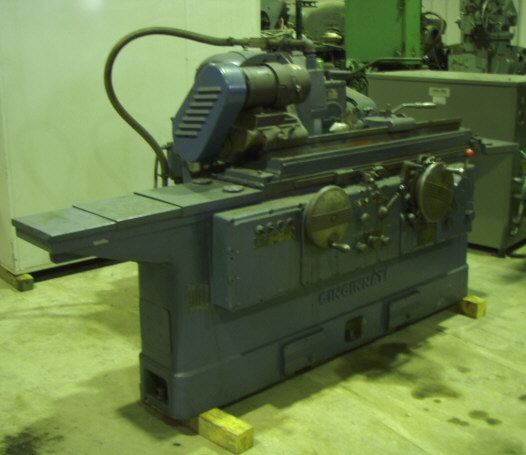

Cincinnati 6” X 30” Plain Hydraulic Cylindrical Grinding Machine,
Model OE, S/N 3P1C1Z-C
SPECIFICATIONS:
Maximum Swing Over Table……………………………………………………….. 6 15/16”
Nominal Distance Between Centers………………………………………………………. 30”
Table Traverse Rate…………………………………………………………….. 3 to 240 IPM
Taper in Headstock and Tailstock………………………………………………. No 10 B&S
Swivel Table Graduated to Angle………………………………………………. 9 ½° to -2°
Table Tarry Adjustment………………………………………………………………. 0-5 sec
Grinding Wheel Size-New………………………………………………. 24” x 2” x 12” hole
Workhand Speeds……………………………………………………………….. 97-395 RPM
Wheelhead Motor……………………………………………………………………….. 7 ½ HP
Hydraulic Motor………………………………………………………………………………. 1 HP
Floor Space……………………………………………………………………………… 75” x 130”
Approximate Weight…………………………………………………………………… 7000 lbs
EQUIPPED WITH:
Automatic Pick Feed
Coolant
CONDITION: Good to very good.
Stk#2503
