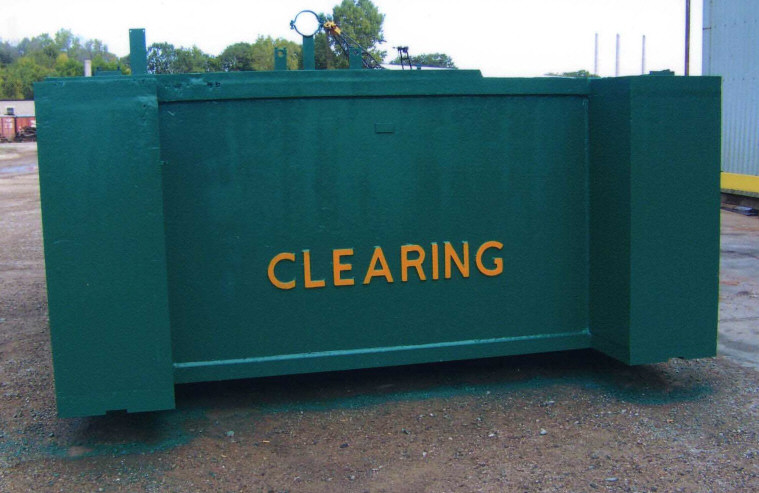

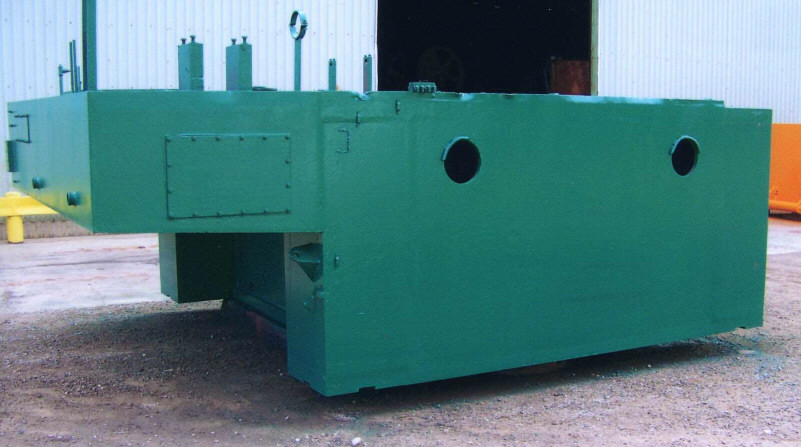

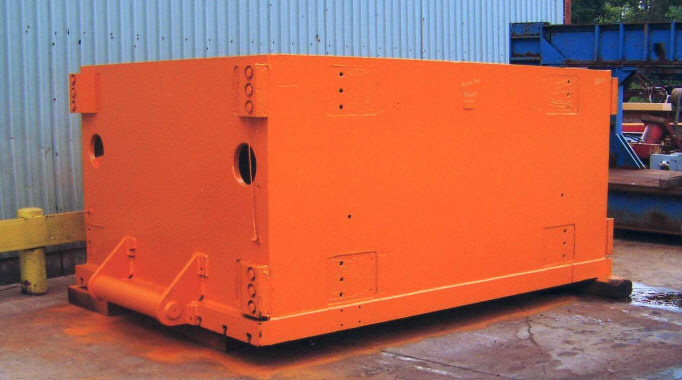

2000 Ton Clearing Hydraulic Press,
Model H-2000-96-144, S/N 11-1080
SPECIFICATIONS:

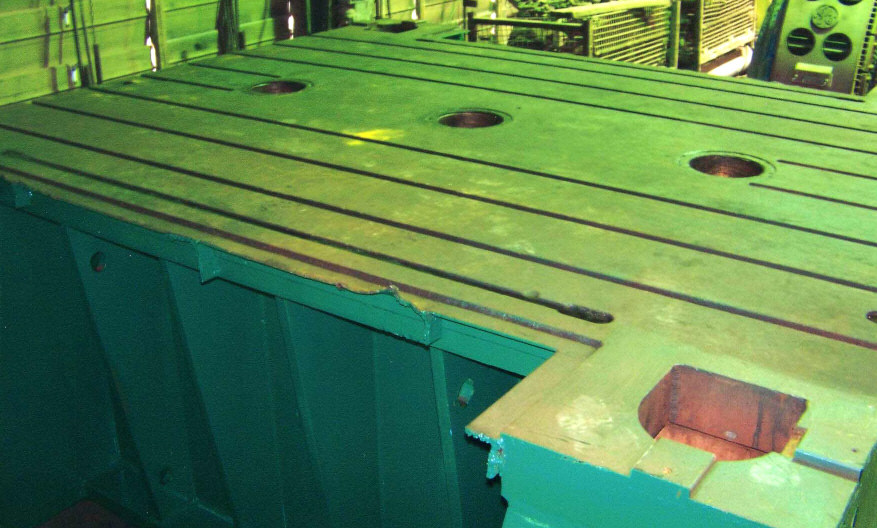

Bed Length………………………………………………………………………………………. 144”
Bed Width…………………………………………………………………………………………. 98”
Bed Length Between Columns………………………………………………………….. 102 ½”
Bed Width Between Columns………………………………………………………………….. 98”
Stroke……………………………………………………………………………………………….. 60”
Shut Height………………………………………………………………………………………… 28”
Open Height………………………………………………………………………………………. 88”
Ejector Rams……………………………………………………. Three(3) 10” dia – 30” stroke
…………………………………………….. 40 3/8” Center to Center Distance
Capacity of Slide……………………………………………………………………….. 2000 Tons
Lifting Capacity (Stripping)…………………………………………………………….. 90 Tons
Intermediate Pressing………………………………………………………………… 1000 Tons
Fast Advance………………………………………………………………………………. 335 IPM
Intermediate Pressing…………………………………………………………………….. 36 IPM
Full Tonnage Pressing……………………………………………………………………. 18 IPM
Fast Return-Lower Action (As an Ejector)………………………………………… 315 IPM
Ejector Speed (Upward) Center Ram………………………………………………. 150 IPM
Ejector Speed (Upward) Outer Ram………………………………………………….. 150 IPM
Ejector Speed (Upward) All 3 Rams…………………………………………………. 50 IPM
Ejector Center Ram Only………………………………………………………………. 150 Tons
Ejector Outer Rams Only……………………………………………………………… 300 Tons
Ejector Total 3 Rams…………………………………………………………………. 450 Tons
Stroke of Lower Action (Ejector)…………………………………………………………… 30”
Main Pump Capacity………………………………………………….. 108 GPM @ 3000 PSI
Aux Pump Capacity………………………………………………………….. 39.5 @ 1000 PSI
Pump Motor………………………………………… 150hp-900 RPM-440v/3ph/60cycle
Overall Height………………………………………………………………… 427 ½” (35’ 7 ½”)
Above Floor………………………………………………………………….. 294 ½” (24’ 6 ½”)
Weight-Appx……………………………………………………………………….. 350,000 lbs

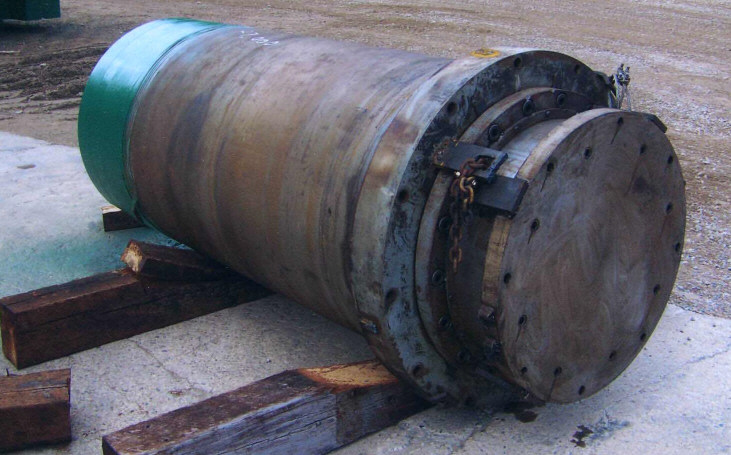

CONDITION: Very Good to Excellent-Remanufactured in 1998-Main Cylinders Replaced with New Ones. Updated Hydraulic & Electrical Systems. Disassembled and in storage, ready to load to trucks.
LOCATION: NE USA
Stk#2463CE
