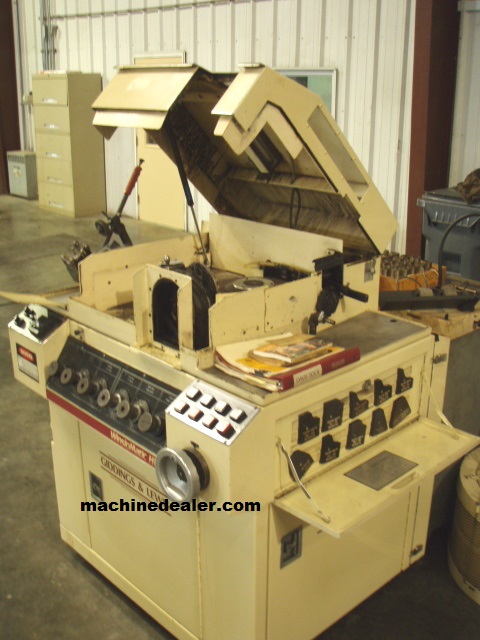

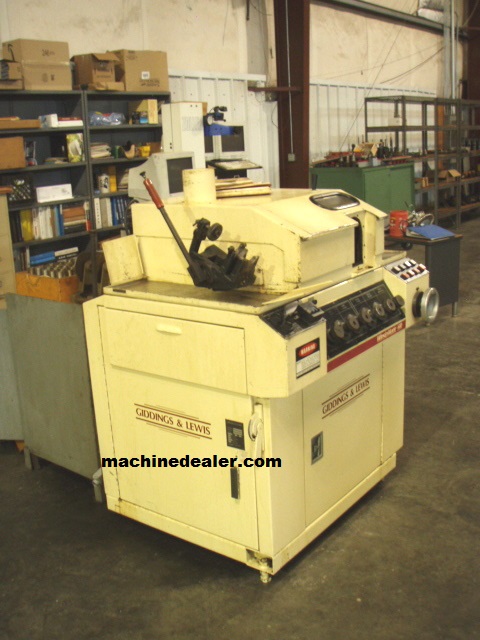

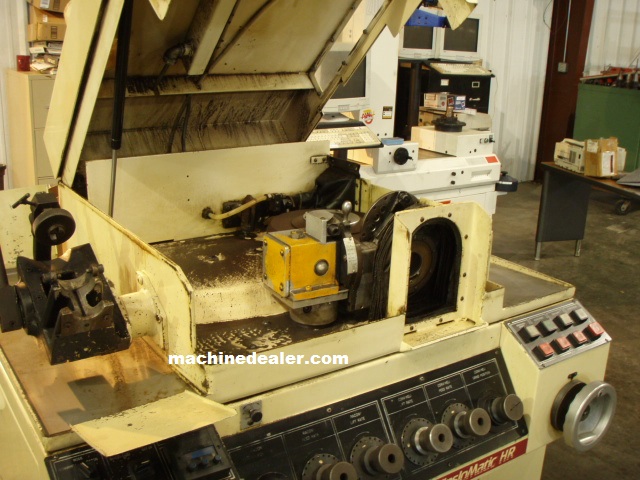

ONE PREOWNED G&L WINSLOWMATIC MODEL HR DRILL POINT SHARPENER, S/N 947-00347-92, NEW 1992

CAPACITY:

Conventional Point 1/16” to 1”
Helical Point 1/16” to 1 ½”
Bickford Point 1/8” to 1”
Racon Point 1/8” to 1”
Split Web Point 1/16” to ½”
Angle Point Ground 90 to 140 degrees
Wheel Size 12” dia X ¾” thick X 5” hole
Overall Size 54” L-R x 48” F-B x 65” H
Weight (machine only) 2,000 lbs

EQUIPPED WITH:

Helical, 3 and 4 fluted drills up to 1.5”

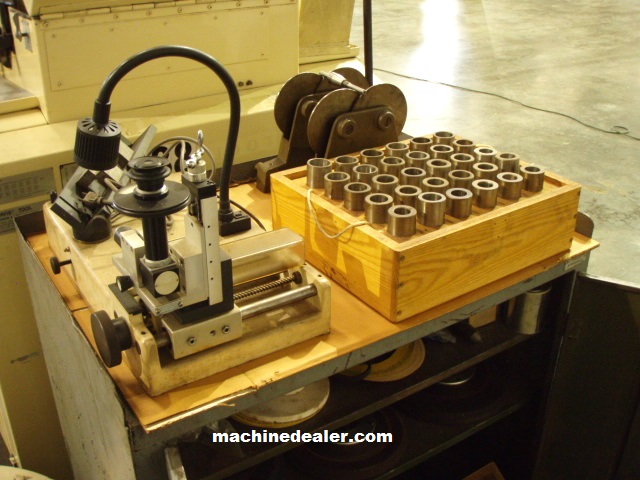

Precision Twist Drill Model 560 Tool Analyzer
Wheel Balancer w/Mandrel
Smog Hog Mist Collector

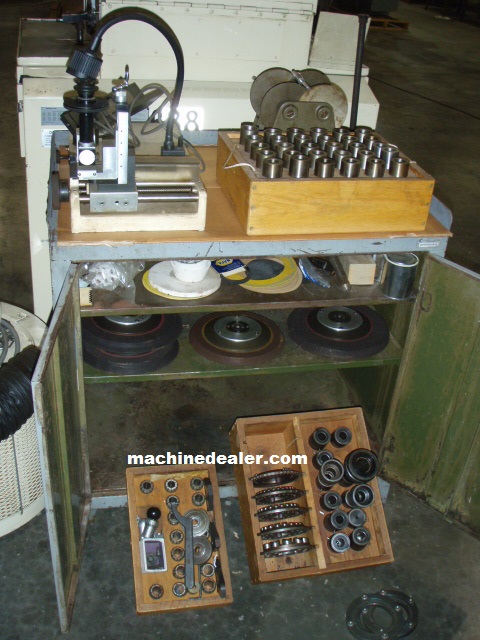

(6) Index Bushing Plates
Drill Holders up to 1 ½”
(5) Wheel Hubs w/Wheels
Set Up Charts & Manuals
Cycle Counter
Flood Coolant
Work Light
Diamond Dresser
Additional Tooling
Wired for 3 Phase, 60 Cycle, 480 Volts

Stk#2719
