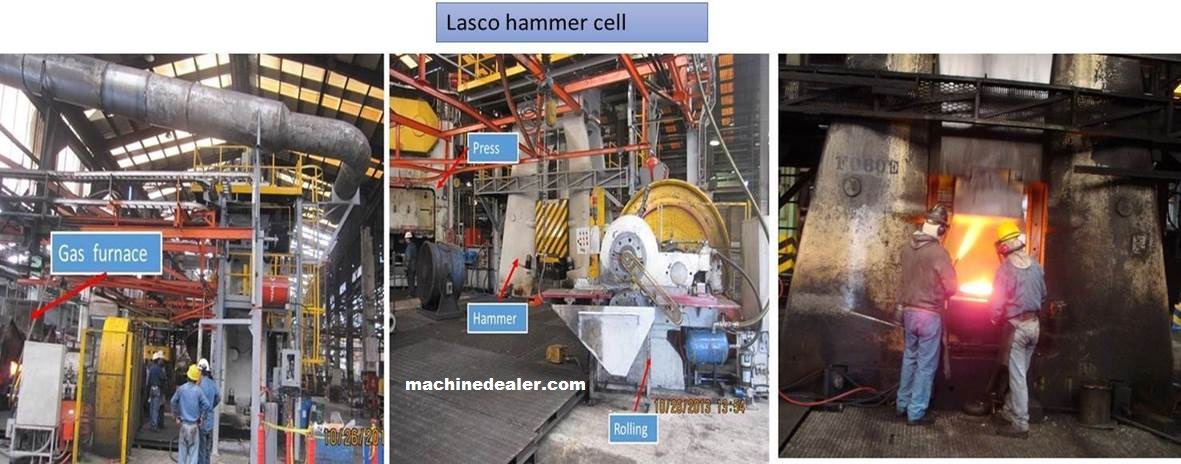

ONE PREOWNED KGK1600 LASCO HAMMER CELL
TO INCLUDE THE FOLLOWING:
- NUTEC Gas Furnace
- NATIONAL 10 Rolling Machine
- KGK 1600 Lasco Hammer Freefall
- Wilkins & Mitchell Mechanical Press
- Set of spares for the hammer (Anvil, Ram, pumps, main motor components, miscellaneous)
SPECIFICATIONS:
LASCO HAMMER CELL:
- NUTEC Gas Furnace
1200°C
Total heating capacity 11,600,000 MBTU/hr 12 burners)
70 to 80 pieces per hour
- NATIONAL 10 Rolling Machine
TN 10
Stock size: 5”/ 125 mm
Maximum rolling length: 40” 1,016 mm
Floor space Wide : 10’ 2” 3,100 mm
Floor space length: 11’4” 3,450 mm
Machine height: 8’ 6.3” 2,600 mm
Machine total weight: 55,066lbs 25,000 kg
- KGK 1600 Lasco Hammer Freefall
KGK 1600
Blow capacity: 16,000 kgm
Capacity of continuous blows/minute : 60 to 70
Blow high with standard die: 1,100 mm
Hammer total weight: 287,000 kg
Anvil base weight: 192,000 kg (New anvil was installed in 2006)
Upgrades weight: 25,000 each (New upgrades were installed in 2013)
Both columns and anvil were made of weldable alloy
according to ISO TR 10809-2
Ram weight: 12,000 kg
Die maximum weight: 2,500 kg
Distance between upgrades
Hammer total height: 10,600 mm
Height above the floor; 8,000 mm
- Wilkins & Mitchell Mechanical Press
102- 54-18
Press capacity : 1,500 tons
Strokes per minute 16
Stroke: 26”
Shut Height: 6”
Table & Ram dimensions: 102” X 72”
Ram weight: 14 tons
Machine total weight: 104 ton
LOCATION: North America
CONDITION: Very Good. In Plant
Stk#2910CSY
