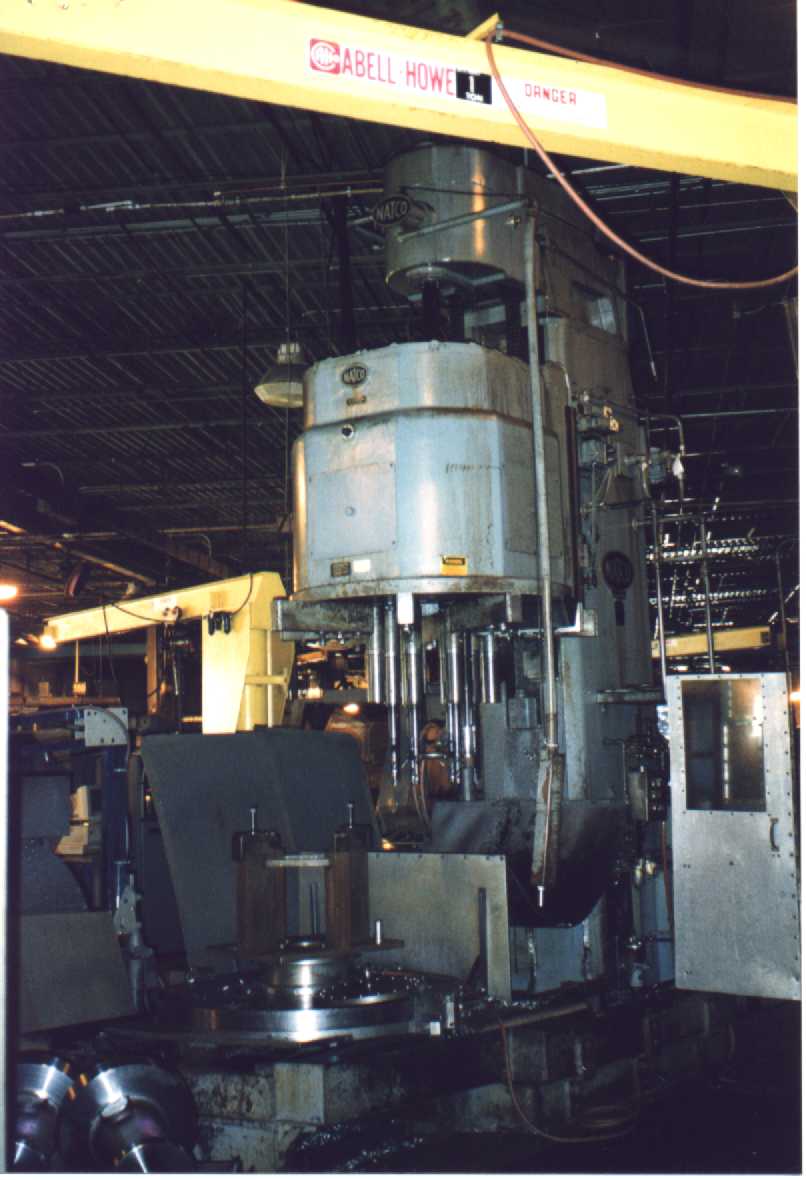

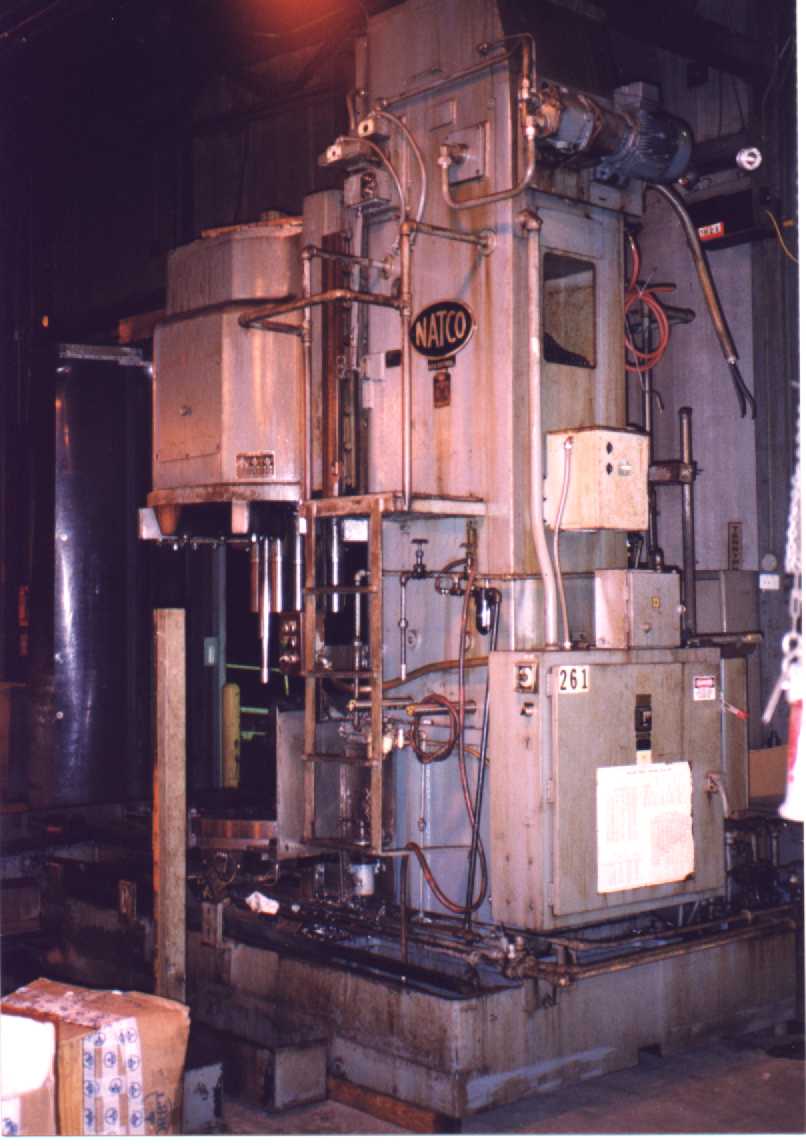

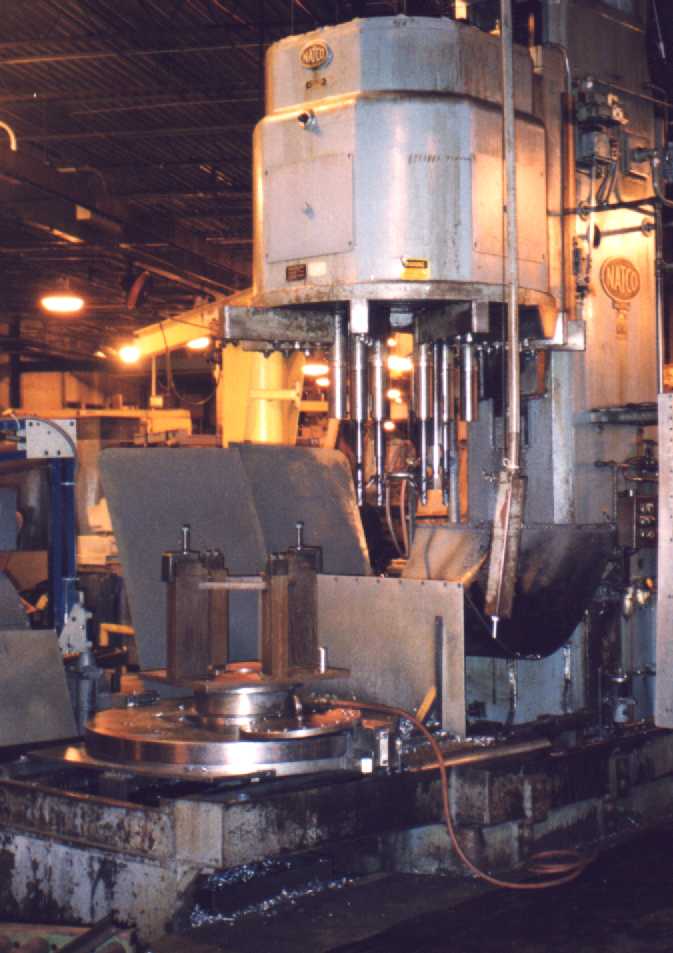

Natco Model F6B Multiple Spindle Drill,
S/N F6B-128, New in 1976
SPECIFICATIONS:
Number of Spindles……………………………………………………………………….. 8
Diameter of Drive Spindles…………………………………………………………….. 3.5”
Feed Stroke……………………………. (MAXIMUM)…………………………………. 18”
Spindle Speed Range………………………………………………………… 87 TO 426 RPM
Feeding Pressure……………………… (MAXIMUM) (Lbs.)…………………….. 35,000
Head Area………………………………. (INSIDE DIAMETER)…………………… 30½”
Main Motor…………………………………………………………………………………. 30 HP
Height…………………………………………………………………………………………….. 17’
Weight…………………………………………………………………………………… 38,000 lbs
EQUIPPED WITH:
Shuttle Table with a 50” Diameter Air Lift Rotary Table
Chip Conveyor
Auto Drill/Tap Cycle
Auto Step Drill
Miscellaneous Adj. Arms and Spindles
AS TAKEN FROM SERVICE
Stk#0261
