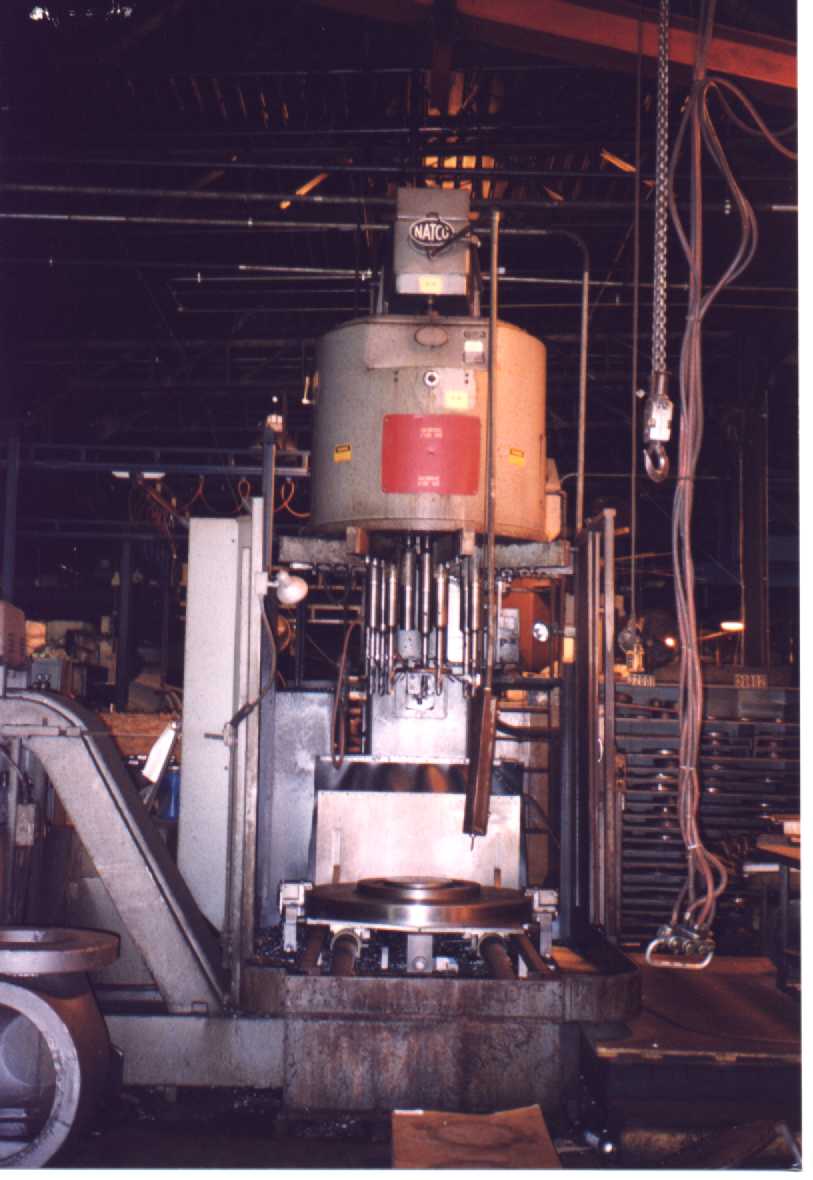

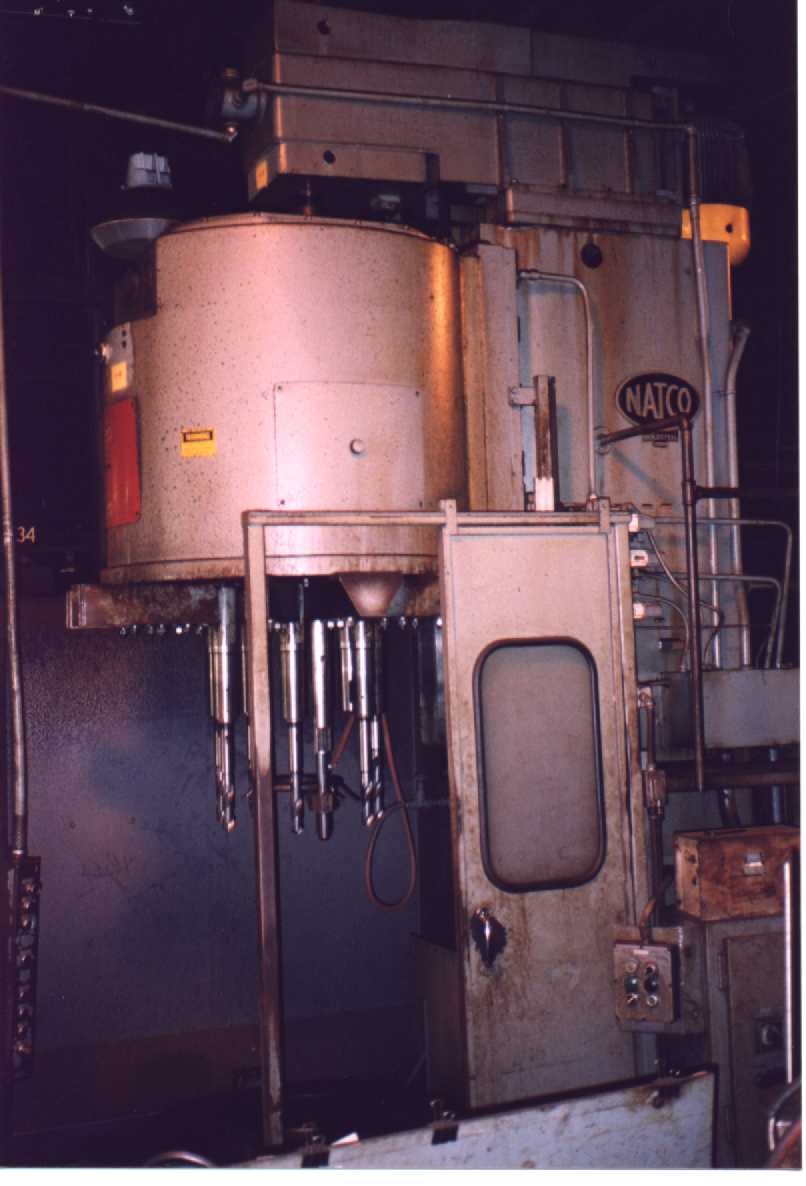

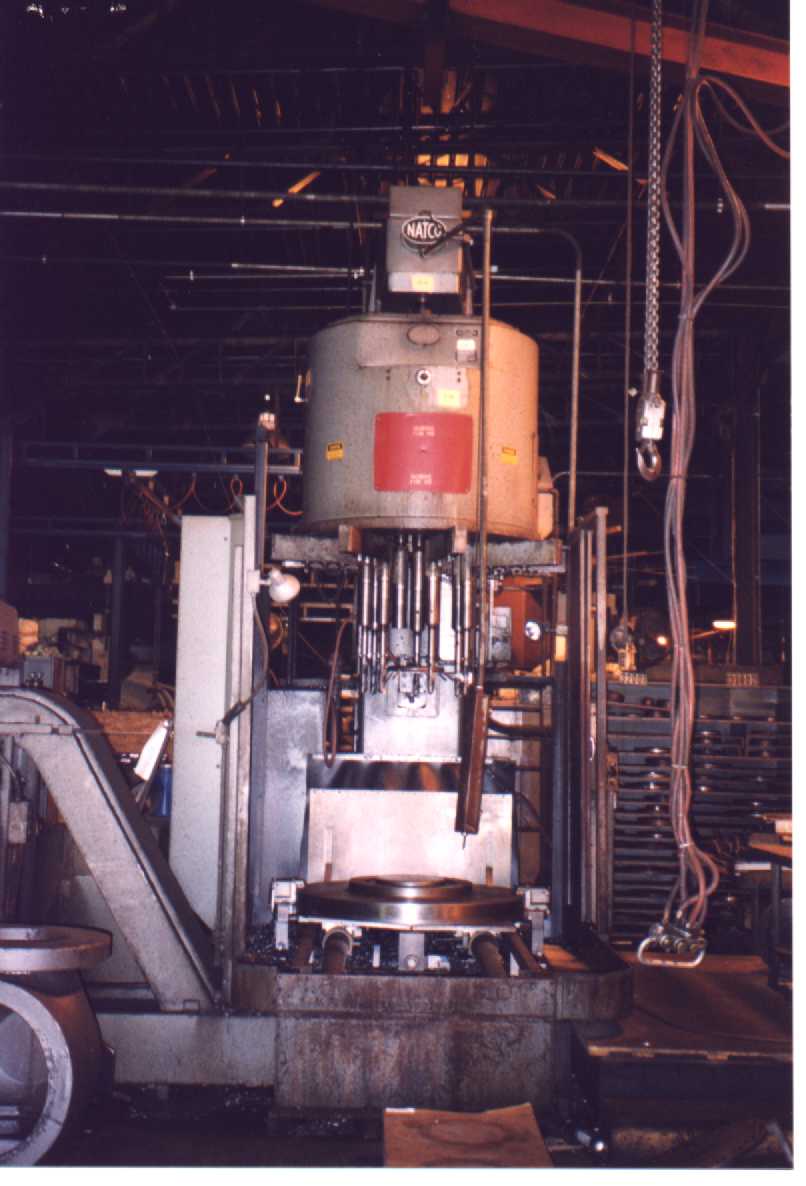

Natco Model G434 Multiple Spindle Drill,
S/N G434-322, Date of Mfg. 1979
SPECIFICATIONS:
Number of Spindles……………………………………………………………………….. 8
Diameter of Drive Spindles…………………………………………………………….. 3.5”
Feed Stroke……………………………. (MAXIMUM)…………………………………. 18”
Spindle Speed Range…………………………………………………………. 87 TO 426 RPM
Feeding Pressure……………………… (MAXIMUM) (Lbs.)…………………….. 35,000
Head Area………………………………. (INSIDE DIAMETER)…………………… 30½”
Main Motor……………………………………………………………………………………. 30 HP
Height…………………………………………………………………………………………….. 16’6”
Weight…………………………………………………………………………………….. 38,000 lbs
EQUIPPED WITH:
Shuttle Table with a 50” Diameter Air Lift Rotary Table
Chip Conveyor
Auto Drill/Tap Cycle
Auto Step Drill
Miscellaneous Adj. Arms and Spindles
Stock # 0320p
