MAULDIN MACHINE INC
PROPOSAL
We are pleased to offer, subject to prior sale and our “Standard Terms and Conditions of Sales”, for immediate acceptance, the following:

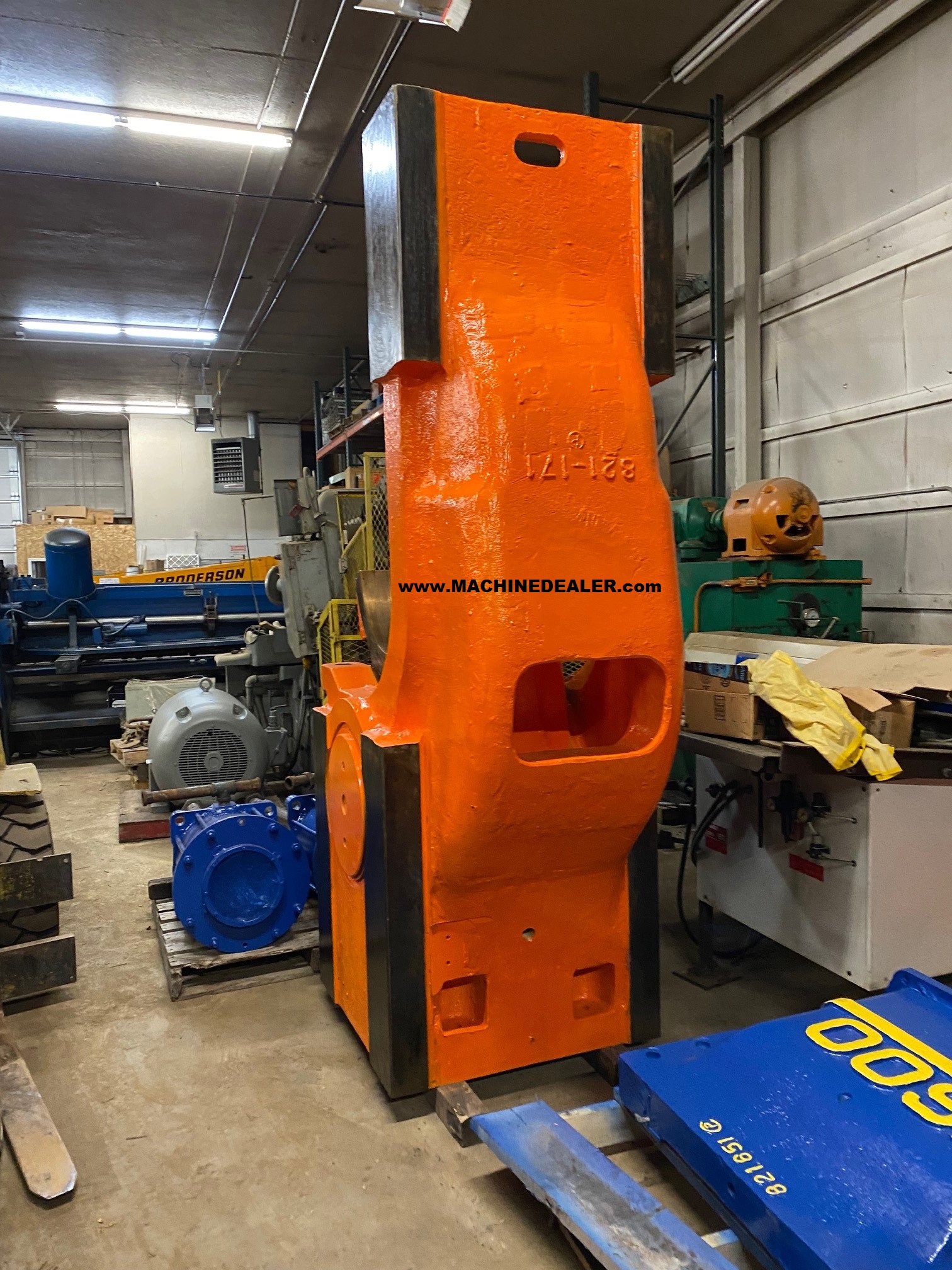

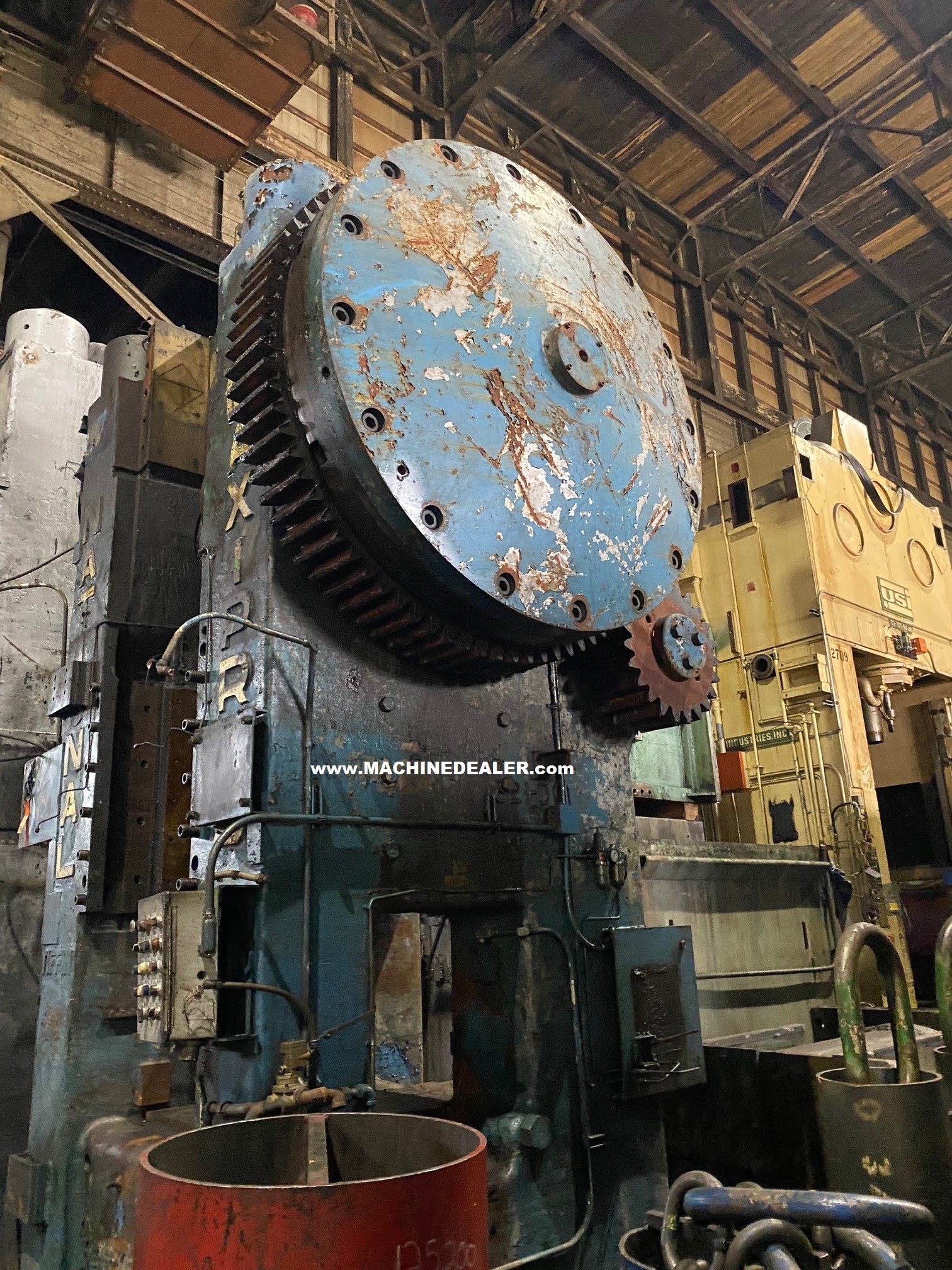

ONE USED 1,600 TON NATIONAL MAXI PRESS, Mfg. 1952, S/N 22310
SPECIFICATIONS:
Rating……………………………………………………………………………… 1600 Ton
Stroke…………………………………………………………………………….. 10”
Strokes Per Minute…………………………………………………………….. 70
Shut Height………………………………………………………………………. 29 7/16 to 30”
Die Seat F-B x R-L…………………………………………………………….. 47” x 41.5”
Ram Face F-B x R-L………………………………………………………….. 35” x 35”
Floor Space F-B x R-L………………………………………………………… 10’ x 14’10”
Wedge Adjustment…………………………………………………………….. 9/16”
Top KO Pin………………………………………………………………………. 2 ¼” Dia.
Max Stroke…………………………………………………………………….. 1 ½”
Bottom KO Pin………………………………………………………………….. 3” Dia.
Max Stroke…………………………………………………………………….. 4 ½”

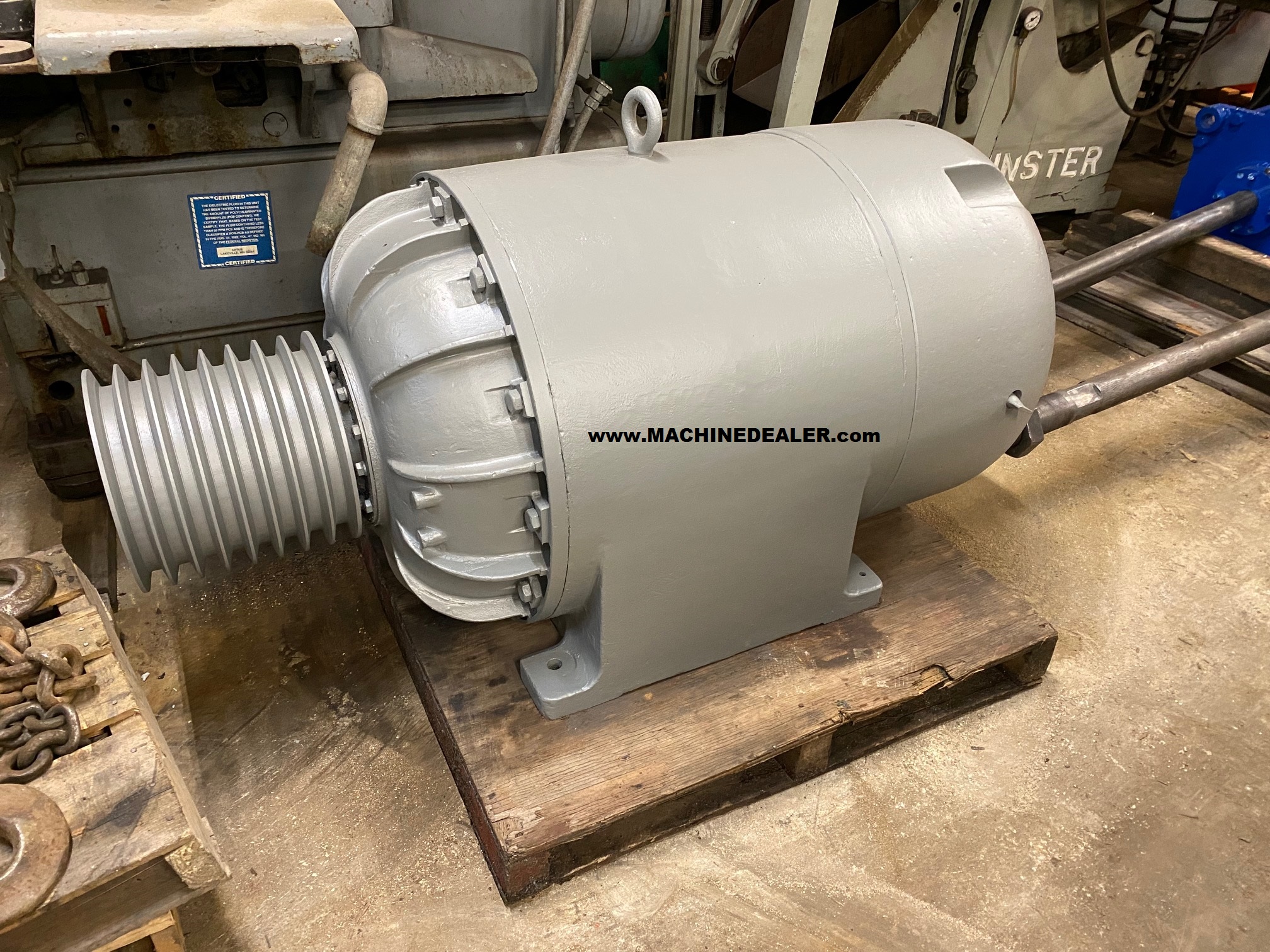

Motor……………………………………………………………………………… 100 HP
Floor Space F-B, L-R………………………………………………………….. 10’ x 15’
Height……………………………………………………………………………… 17’5”
Approximate New Weight…………………………………………………….. 220,400 lbs
LOCATION: Michigan
CONDITION: Good – As taken from service – Partially Dismantled
PRICE…………………………….AS-IS/LOADED TO TRUCK………$POR
Stk#3032CTD
Specifications are correct to the best of our knowledge but are subject to correction upon your inspection. All sales are subject to our “Standard Terms and Conditions of Sales” with exception made only by Mauldin Machine Inc and all parties involved in the transaction. This equipment is used. No warranties implied or written.
See Terms of Sale At: https://www.machinedealer.com/wordpress/2021/5260/
