PROPOSAL
We are pleased to offer, subject to prior sale and our “Standard Terms and Conditions of Sales”, for immediate acceptance, the following:

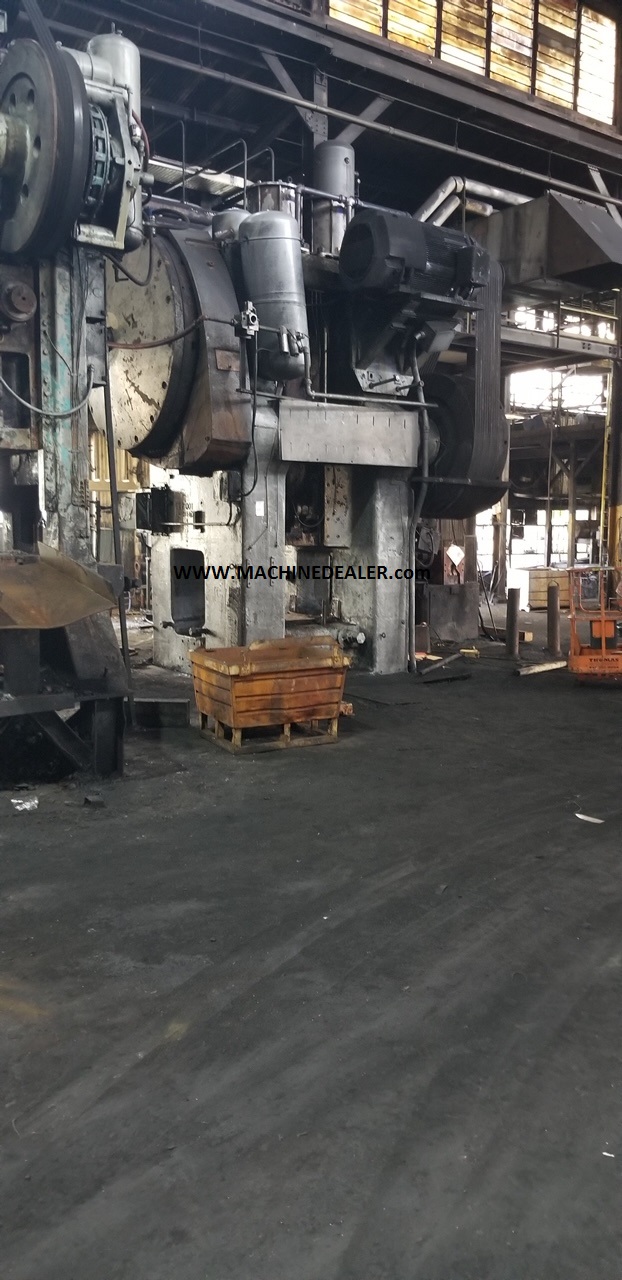

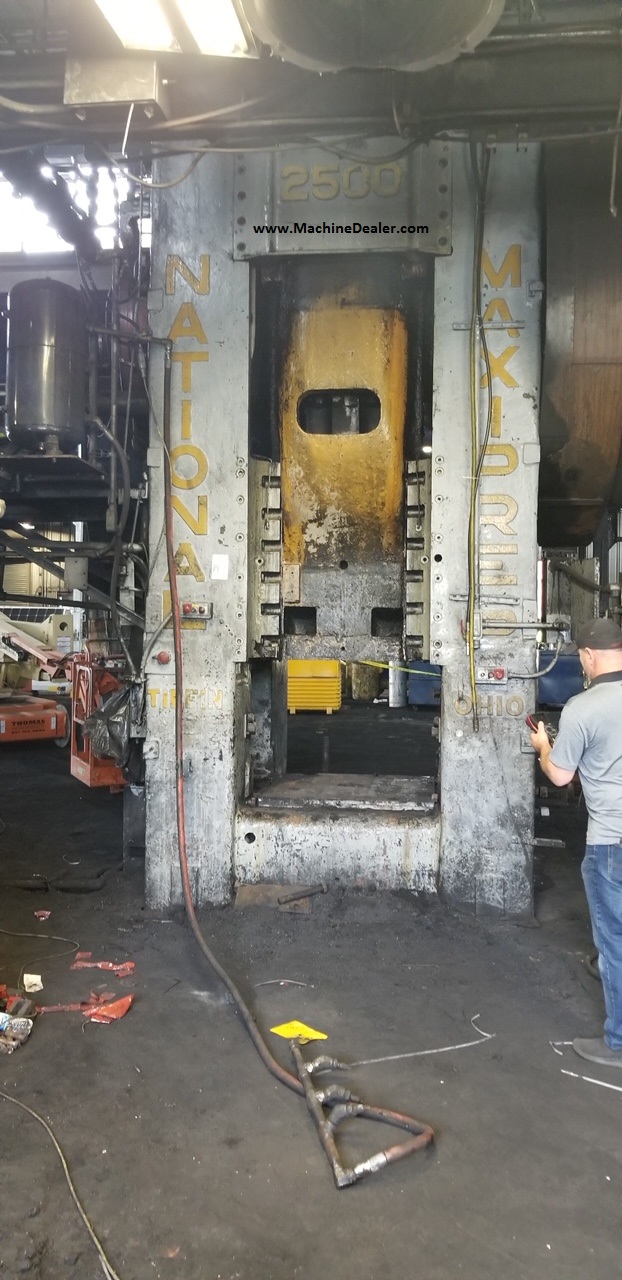

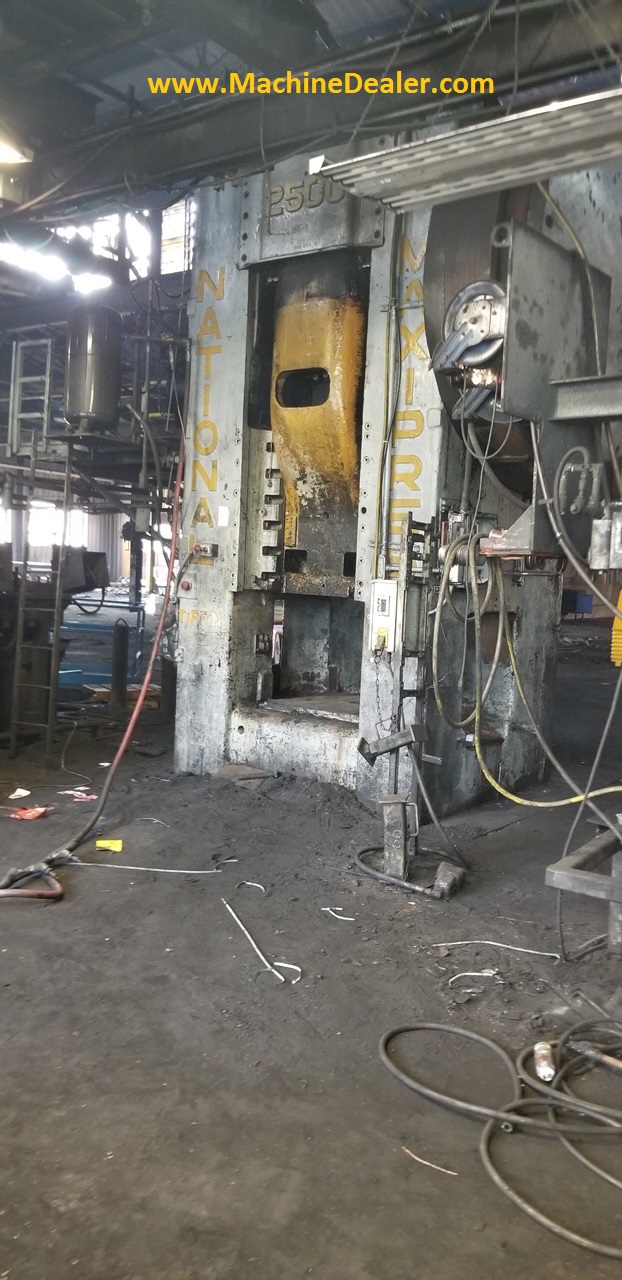

ONE PREOWNED NATIONAL 2500 TON MECHANICAL FORGING PRESS, S/N 26702, NEW IN 1959
SPECIFICATIONS:
Strokes Per Minute…………………………………………………………….. 55
Stroke…………………………………………………………………………….. 14”
Shut Height………………………………………………………………………. 34 3/8” to 35”
Width Between Columns……………………………………………………… 49”
Die Seat, R-L……………………………………………………………………. 47 1/2”
Die Seat, F-B……………………………………………………………………. 54”
Ram Face, R-L…………………………………………………………………. 42”
Ram Face, F-B…………………………………………………………………. 44”
Upper K.O. pin Dia…………………………………………………………2 1/2”
Length of Kick………………………………………………………………1-3/4”
Motor Horsepower……………………………………………………..….150
Floor Space R-L / F-B (Approx)………………………………….………14’ x 12’
Height Above Floor……………………………………………………….17’-9”
Net Weight(Approx)………………………………………………………344,000 LBs
EQUIPPED WITH:
Lower & Upper Kickout
Direct Drive
LOCATION: Michigan
CONDITION: Good
PRICE………………AS INSPECTED/ON LOCATION…………$ UPON REQUEST
Stk#3026CDP
Specifications are correct to the best of our knowledge but are subject to correction upon your inspection. All sales are subject to our “Standard Terms and Conditions of Sales” with exception made only by Mauldin Machine Inc and all parties involved in the transaction. This equipment is used. No warranties implied or written.
