ERIE 1000 TON FORGING PRESS 3036
ERIE 1000 TON FORGING PRESS 3036 2 PRESSES AVAILABLE
MAULDIN MACHINE INC.
Dealers in New and Used Industrial Machinery
PROPOSAL
We are pleased to offer, subject to prior sale and our “Standard Terms and Conditions of Sales”, for immediate acceptance, the following:

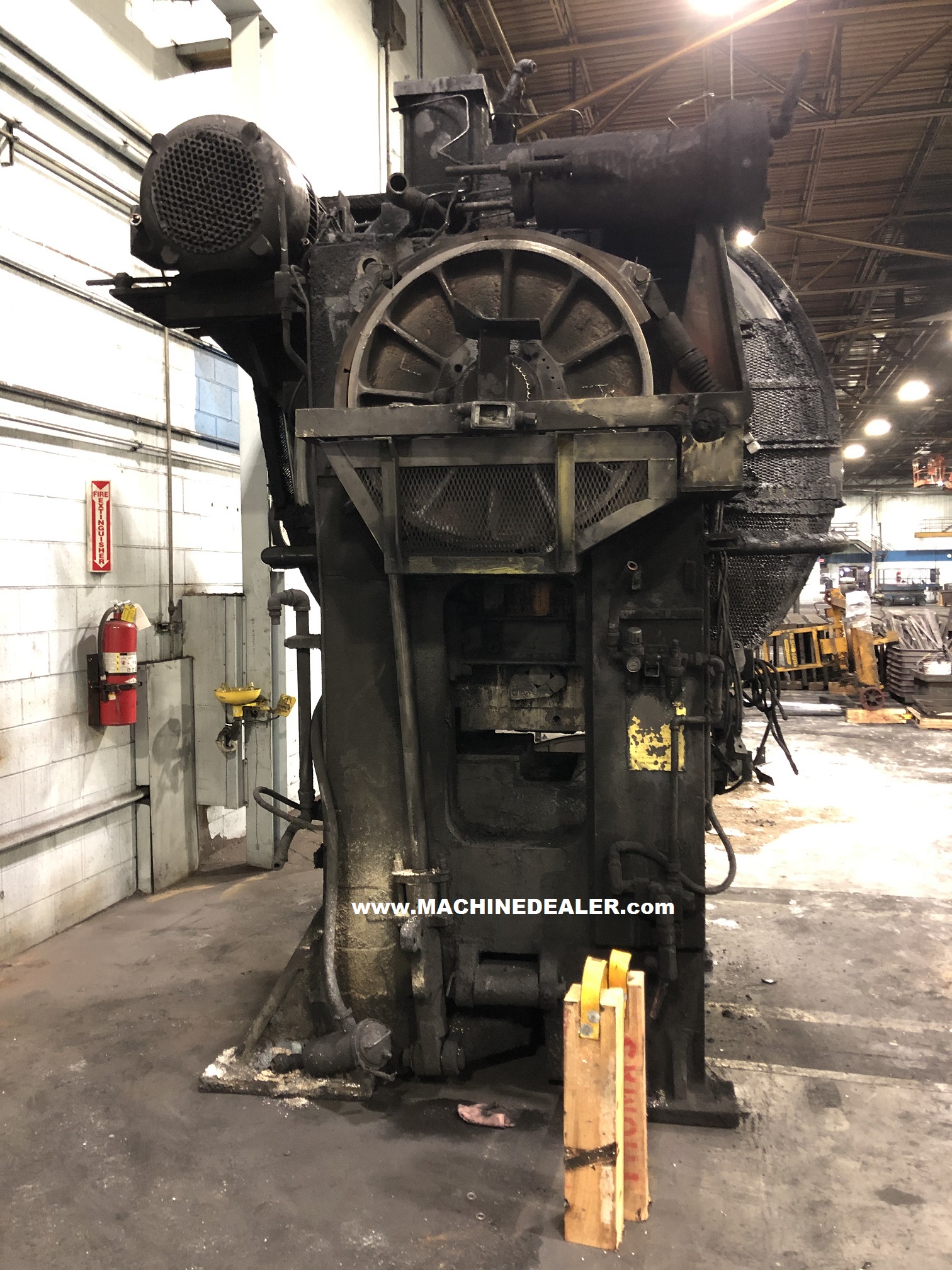

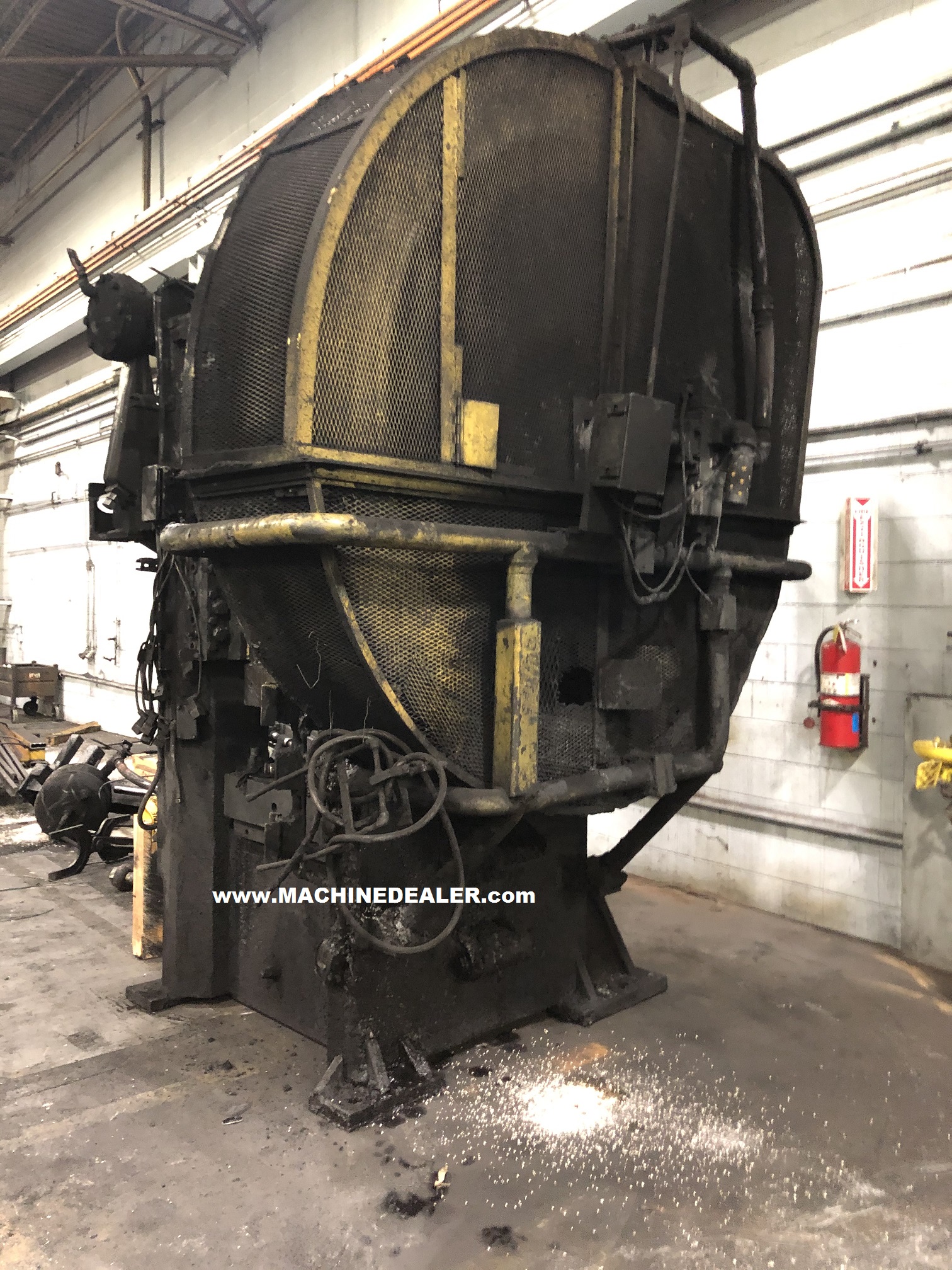

ONE PREOWNED ERIE 1000 TON MECHANICAL FORGING PRESS, NEW IN 1976
SPECIFICATIONS:
Strokes Per Minute…………………………………………………………….. 90
Stroke……………………………………………………………………………….. 10”
Shut Height on Wedge……………………..………………..……………….. 24”
Width Between Columns……………………………………………………… 31”
Die Seat, R-L………………………………………………………………………. 30”
Die Seat, F-B………………………………………………………………………. 40”
Ram Face, R-L……………………………………………………………………. 30”
Ram Face, F-B……………………………………………………………………. 31”
Eccentric (Crank) Dia. At Bearing………………………………………….14”
Eccentric (Crank) Dia. …………………………………………….………….20”
Motor Horsepower………………………………………………………….….N/A
Floor Space R-L / F-B…………………………………………….………9’-8” x 7’4”
Height Above Floor………………………………………………………….11’-3”
Net Weight(Approx)………………………………………………………90,000 LBs
EQUIPPED WITH:
Lower & Upper Kickout
LOCATION: Michigan
CONDITION: Good – As Taken From Service
PRICE…………AS INSPECTED/ON LOCATION……………$ PRICE UPON REQUEST
Stk#3036CDP TWO PRESSES AVAILABLE
Specifications are correct to the best of our knowledge but are subject to correction upon your inspection. All sales are subject to our “Standard Terms and Conditions of Sales” with exception made only by Mauldin Machine Inc and all parties involved in the transaction. This equipment is used. No warranties implied or written.
