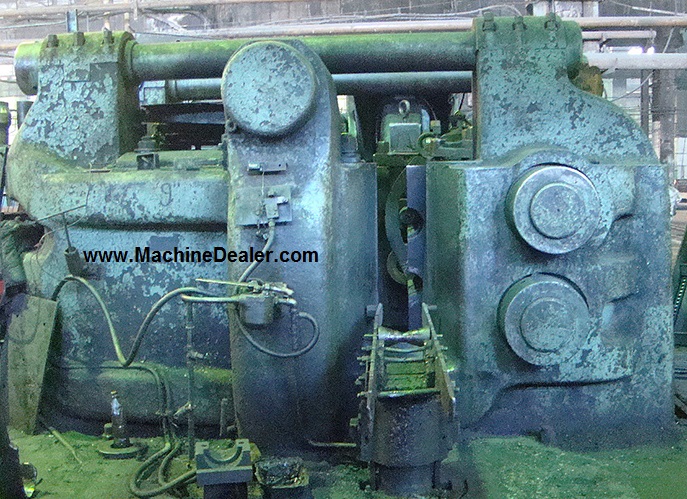

9″ National High-Duty Heavy Upset Forging Machine (Upsetter) 3047CTF

Contact An Agent
Specifications:
Diameter
9 “
Manufacturer
National
Forge Tons
2,250 tons
Grip Open
11 “
Stroke
26 “
SPM
25
Grip Tons
1,125 tons
Gather
15 “
Hold
5.5 “
Die space length
32 “
Die space height
52 “
Thickness of each die
13.1 “
Main motor power
250 hp
Machine length
264 “
Machine width
240 “
Distance face of wedge to face plate heading slide forward
70 “
Net weight
535,000 lbs
Crank pin diameter of main shaft
22 “
Model number
9FM

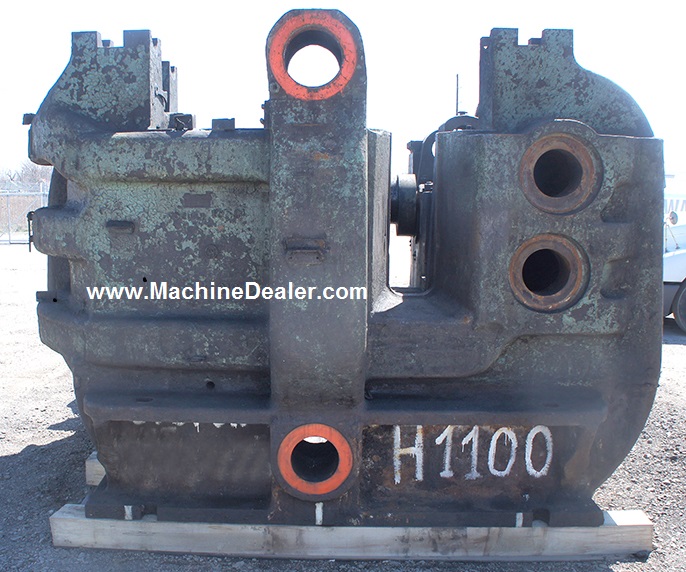

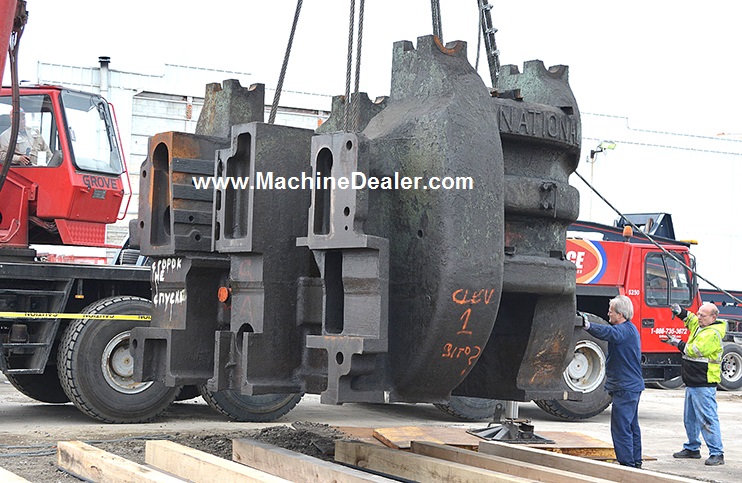

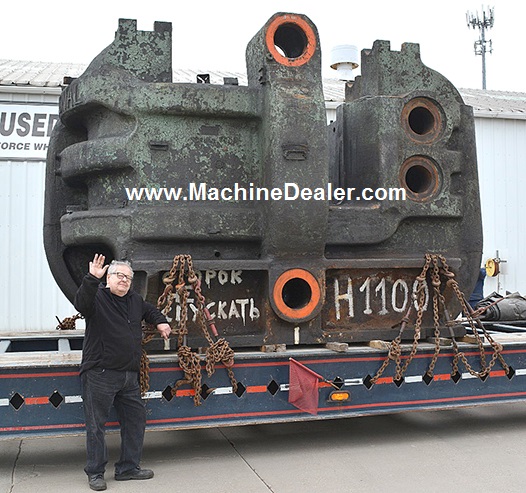

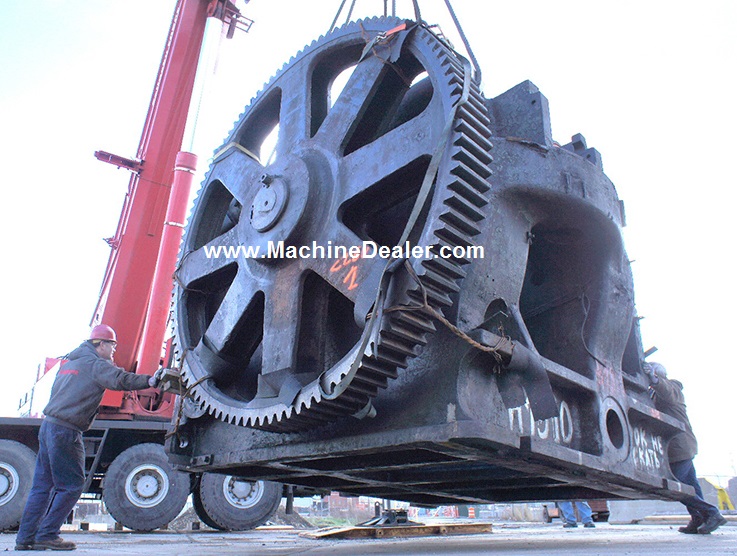

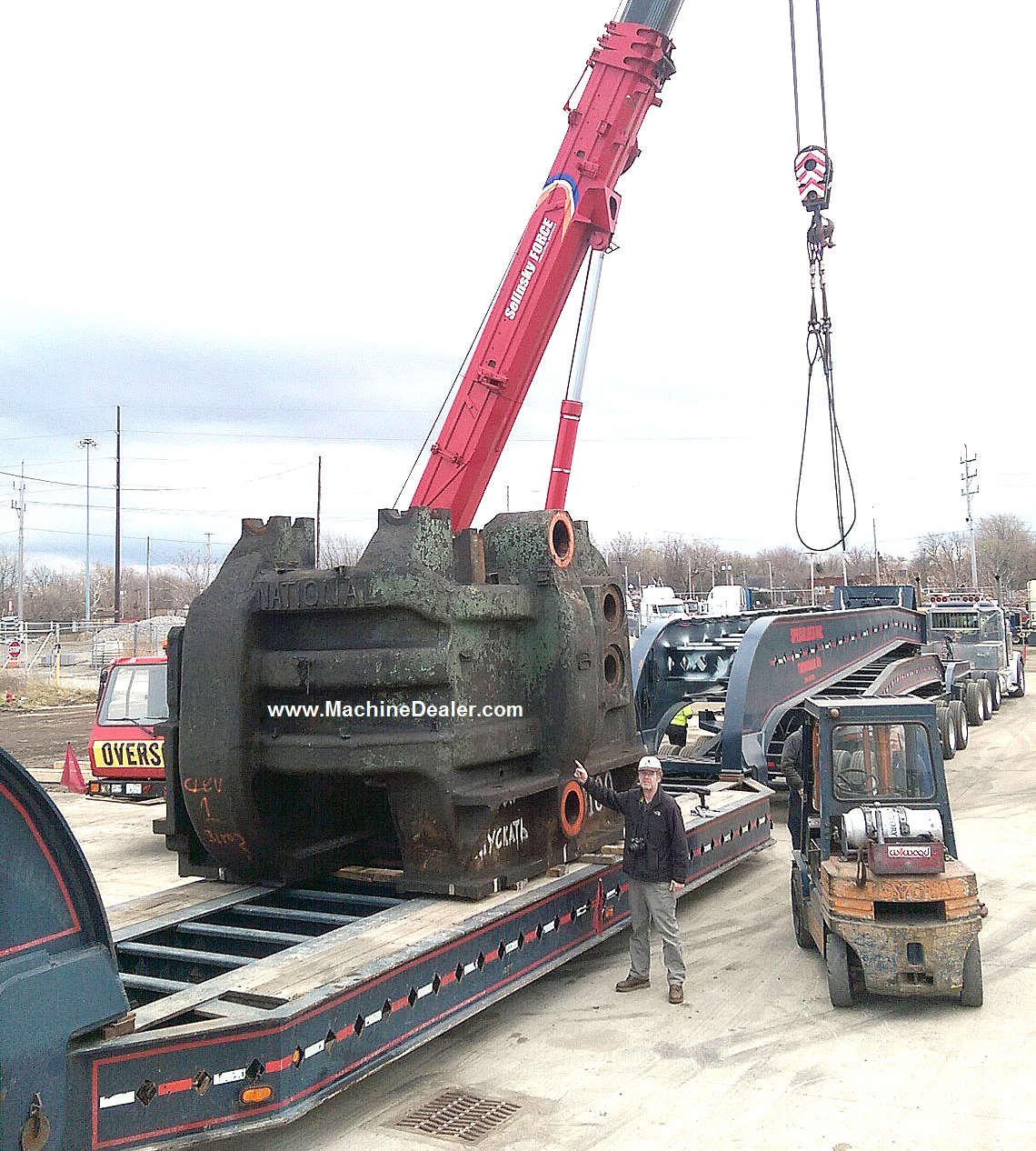

CONDITION: Good – Dismantled and in Storage. Less motor and Controls

LOCATION: North East USA

COST……..AS-INSPECTED/ON-LOCATION..$REQUEST QUOTE

Stk. # 3047CTF
